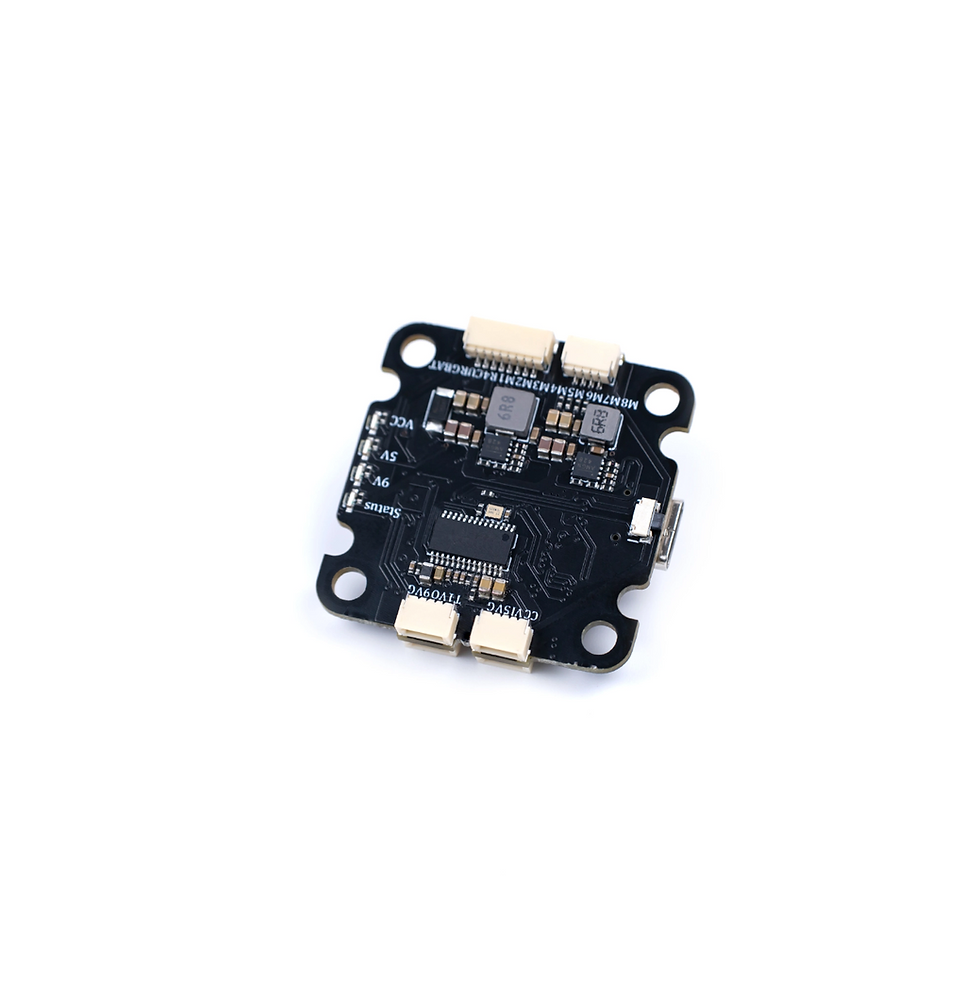

AxisFlying Argus Plug and Play F7 FC 30.5x30.5mm
Plug and Play Argus is an electronic series from AxisFlying that includes ESC, FC and Stack.
The Argus series is intended exclusively for printed circuit board electronics.
The FC is a F722 that can support X8.
Particularities:
High quality MOSFETs:
The selection of high-quality and large-format MOSFETs with low internal resistance and low heat generation ensures stable performance, even with prolonged use of the throttle.
No welding, more safety:
This FC supports direct plug-in of HD Air unit, analog camera, GPS and other common peripherals.
Integrated dual BEC:
It supports the direct connection of the DJI O3 Air Unit.
Quick check of operating status:
Turn the corresponding status indicator on and off to check the operating status of the FC.
Scope of delivery:
1x AxisFlying Argus Plug and Play F7 FC
1x FC/ESC cable
1x GPS cable
1x DJI Air Unit Cable
1x receiver cable
1x Beeper LED cable
1x Analog camera cable
1x Analog VTX cable
1x 5678 Motor cable
1x Avatar VTX cable
4x silicone grommets
1x 8H 1.0mm 8-pin cable (ESC cable)
1x 5H 1.0mm 10-pin cable (ESC cable)
1x SH 1.0mm 6-pin cable (GPS)
AxisFlying Argus Plug and Play F7 FC 30.5x30.5mm
FC goal: STM32F722RET6 Gyro: BMI270 Barometer: Supports OSD: Supports BEC: 9V/2A & 5V/2A UART: 6 Black box: 16M Number of supported engines: M1-M8 Firmware name: AXISFLYINGF7PRO
Input voltage: 3-6S LiPo Mounting holes: 30.5x30.5mm/M3 Weight: 8.4g Manual (English)
